THE DREW 24
- Regular price
- $3,999.00 CAD
- Sale price
- $3,999.00 CAD
- Regular price
-
The DREW 24 is the ultimate full-suspension MTB for young riders aged 7 to 9 years old. This trail beast is very capable and balanced on everything from single track trails to bike parks. It's ready when you are and will turbocharge your progression.
Designed from scratch for riders between 115 cm and 135 cm tall, the DREW 24 is the youth trail king. From its full carbon fiber frame combined with the four-bar linkage suspension design to the shred-ready Maxxis Rekon tires, there are no compromises.
The Manitou suspension is easily adjustable to suit a range of rider weights and provides 120mm of suspension travel in the front and 115mm in the rear. A 90mm dropper post boosts standover for rowdy descending.
Builds
Curated components for the ultimate riding pleasure and progression
Frame
Full Carbon Fiber
Front Hub
Formula DC-711, 32H, 6 BOLT DISC HUB, 15 x 110 mm FOR THRU AXLE, SEALED BEARING
Wheel Size
24in
Rear Hub
Formula DHT-14211, 32H, 6 Bolts, 12 x142 mm, THRU AXLE, HG FREEHUB BODY
Rear Shock
Manitou Mara 170 x 30 mm / Travel 115 mm
Font Rim / Rear Rim
Jalco JD200 PLUS, 24in, 25 mm Inside Width, Tubeless Ready
Fork
Manitou JUNIT Comp 24", 120 mm
Front rotor / Rear Rotor
TEKTRO , Anti-Vibration,160MM ,1.8 mm Thickness
Rear Derailleur
SRAM NX 1x11spd
Brakes
TEKTRO Hydraulic disc brake, Short reach for junior, 2 fingers leve
Shifter
SRAM NX 11spd,-Speed X-ACTUATION Trigger Shifter
Crankset
SAMOX Alloy forged Crankarm, 127 mm, with Direct MountNarrow wide steel chainring , 30T
Cassette
SRAM PG 11sp, 11-42T, Black
Handlebars
SDG SLATER JR BAR, 650mm x 19mm, Sandblasted Black Anodized,
Chain
KMC X11
Stem
JD, CNC Machined, H: 39 mm, Bar Bore: 31.8 mm, Extension: 35 mm, Black Anodized
Changuide + Bashguard
ISCG05 Bolts Mount
Saddle
Velo, JR Spec saddle Single Density, 234x132 mm, Steel Rail
Bottom Bracket
Samox 73 mm BSA BB, 2 Sealed Cartridge Bearings, Alloy External Cups
Dropper Seatpost
JD Dropper Post, Alloy 6061 T6, Dia.: 27.2 / Travel 90 mm
Headset
Neco CNC AL7075 ZeroStack
Grips
SDG SLATER JR GRIPS
Rear Tire / Front Tire
24x2.2 Maxxis Rekon, Foldable, 60tpi
Weight (w/o pedal)
24.5 lbs / 10.9 kg
* Specs are subject to change without notice.

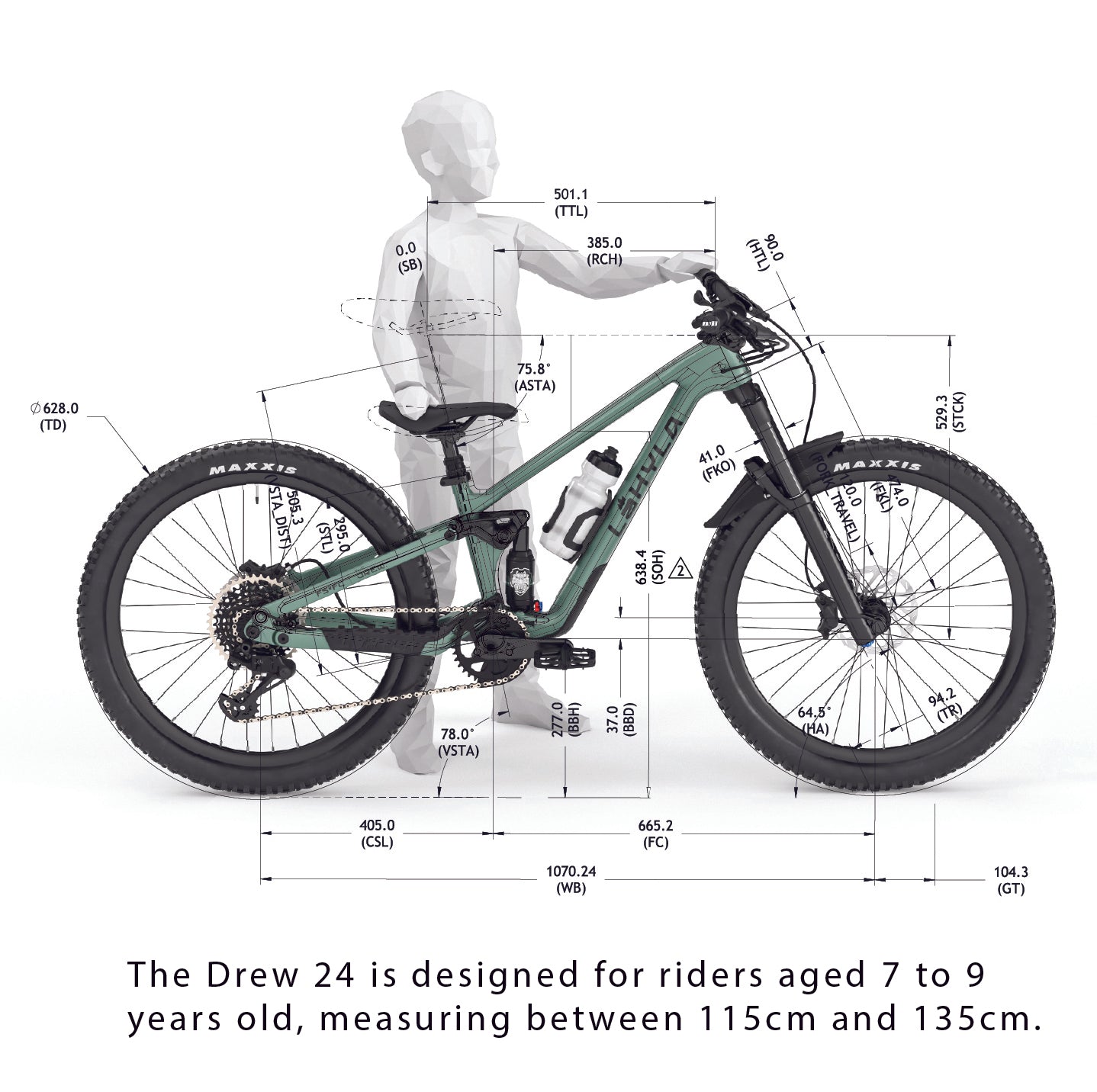

Geometry
Designed for young riders, the frame geometry enables optimized kinematics, accommodates shorter crank arms, a lower bottom bracket for minimal standover height, and a narrow Q-Factor. Note: VISTA_DIST is the distance used for Vista measurement, which is the distance from the center of the BB to the top of saddle for average rider of this size
FRAME SPECS
Frame is design to deliver optimized configuration. Experience the benefits of a meticulously designed frame that offers superior riding agility and pedalling efficiency.
Frame Material
Full Carbon Fiber
Suspension System
Four-bar
Wheel Sizes
24in
Maximum Tire Size
24 x 2.35
Fork
24” /120 mm
Fork Steer Tube
1 1/8” x 1 1/2”
Fork OFFSET
42 mm
Fork Axel to Crown
474 mm
Headset
ZS44/28.6 / EC56/40
Rear Shock
115 mm (170 x 30 mm)
Shock Mounting Bushing Front (Upper)
8 x 35
Shock Mounting Bushing Rear (Lower)
8 x 25
BB Standard
68/73 mm BSA (Threaded) / ISCG05
Max Crank Length
127 mm
Seat Post Diameter
27.2 mm
Seat Clamp
31.8 mm
Rear Hub
142 x 12 mm
Rear Axle
Rockshock Maxle Stealth M12 x 1.0, 171.5mm
Rear Derailleur Mount
Sram UDH
Max Number of Speed
11x
Rear Brake Mount
Post Mount 140 / (160 mm with adapter)
Front Rotor Size
160 mm
Water Bottle Cage Mount
1x
Suspension
The suspension system features a higher leverage ratio, enabling lighter riders to increase shock air pressure (psi.) for reduced stiction and seal friction, enhancing kinematic performance and pedalling efficiency.
Features
-
SHORTEST CRANK ARMS
Shortest crank arms in the category for more efficiency. 127mm_(DREW_24) / 140mm_(DREW_MULLET_26x24) -
LOW AND BEHOLD
This isn't just about making it easier for your little one to touch the ground (though that's a nice bonus). It's about lowering the center of gravity for increased stability and confidence. Drew’s BB height is 26cm, which is great since many youth full-suspension bikes have a BB height of around 31cm. -
THE NARROWEST Q-FACTOR
Drew’s Q-Factor is 155mm compared to 175mm or even more on many youth full-suspension bikes. This requires a specific chainstay design and tube geometry. -
HYDRATION STATION
Hydration is important. We know kids aren't fans of wearing water packs.The kids are right after all, it is best to carry the water load at the lowest possible point on the frame, for more stability and rider comfort. -
DRESSED TO IMPRESS
The Drew comes fully equipped with youth-specific components / dropper post, 90mm (24in), 120mm (Mullet_26x24in) / downtube and chainstay protectors / internal cable routing guide / pedals / ISCG05 Bolts mount. -
LIGHTWEIGHT COMES OEM
The Drew is the lightest bike in its class.
